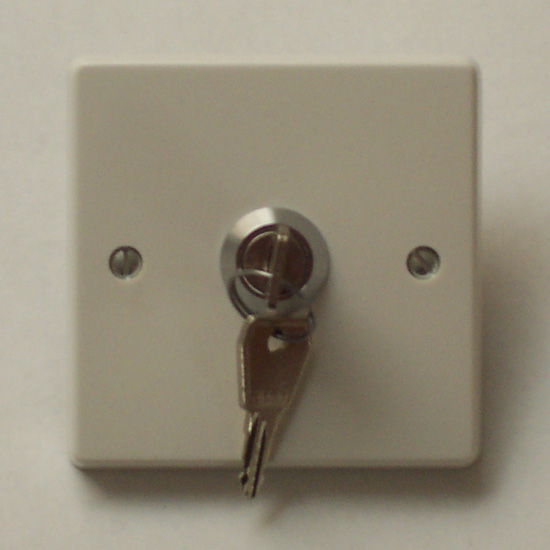

Mounted on single gang plate, fitted with common key as standard.

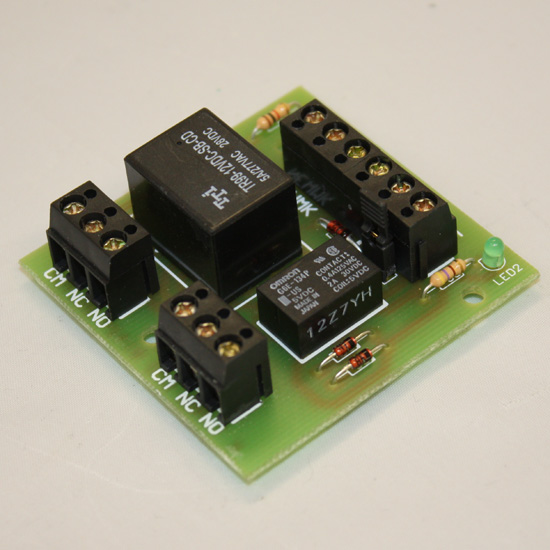

A small PCB only 50mm x 50mm with 12 or 24 volt DC supply line to switch an 8 amp power relay from a 5 volt output in Newmark lock control. 12/24 volt selector is an on-board jumper. Input trigger and relay activation or LED indicated.

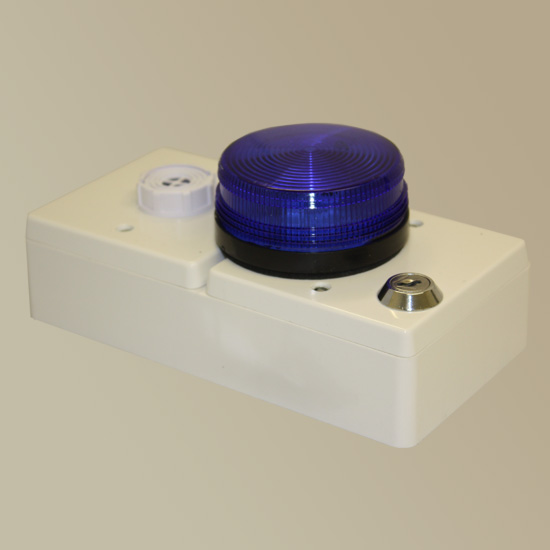

This unit can be supplied in either 12 or 24 volt DC versions. Housed in a double gang box with high output programmable sounder (with 24 available sounds), front mounted low profile blue strobe light and an ON/OFF keyswitch. Red, yellow and white strobes are available as an option. Inside the box is a PCB with 2 normally closed loops, outputs for strobe/sounder and clean change over relay contacts. On opening the closed loops the unit can be set to alarm immediately or after a set time, controlled by on-board preset. It can be also configured to latch and reset via the keyswitch or auto reset by closing the loop. If alarm is set to delay then re-closing the loop before alarm condition is triggered will reset the unit.

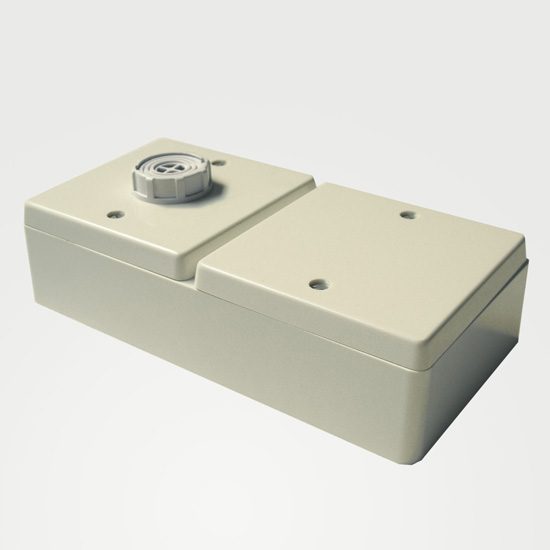

As STROBE 2, without strobe fitted.

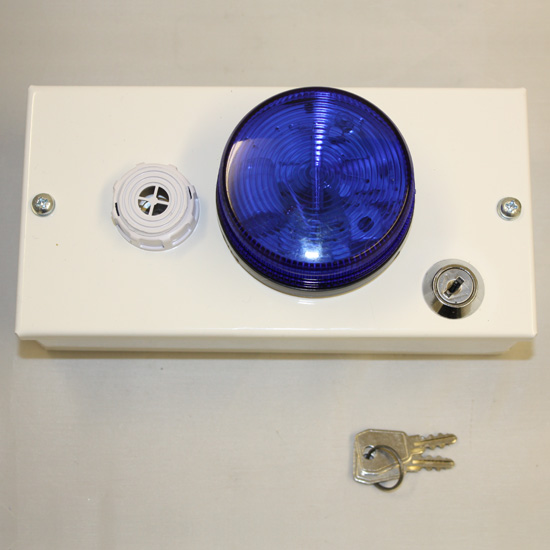

As STROBE2 but fitted in 2 piece steel box, finished in white. 90mm x 48mm x 180mm approx. Strobe height is 35mm.
