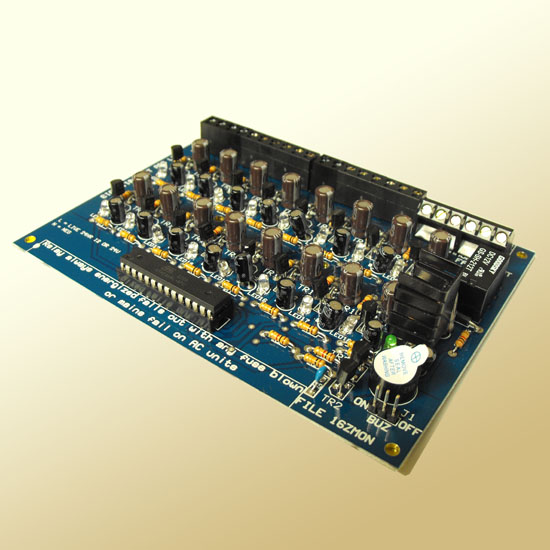

1 - 16 Zone fuse output monitoring board, compatible with both AC and DC supplies. Common fault output provides double-pole clean relay changeover when one or more fuses are activated. On board jumpering allows for optional audio warning. Multiple output monitoring available soon.

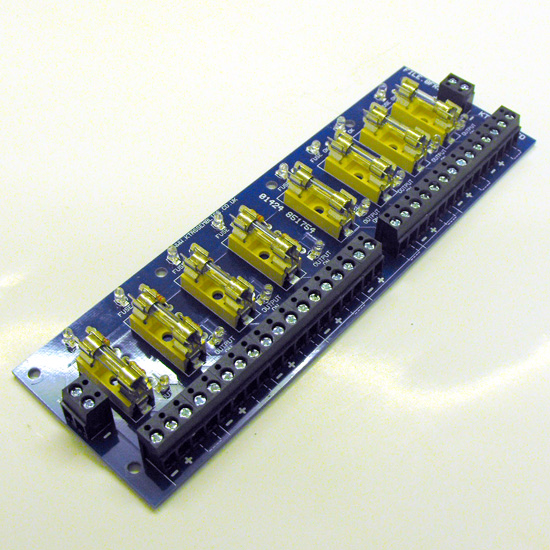

8 way fusecard with LED indication for both fuse OK and Output OK. Each output can be individually controlled via RS link.

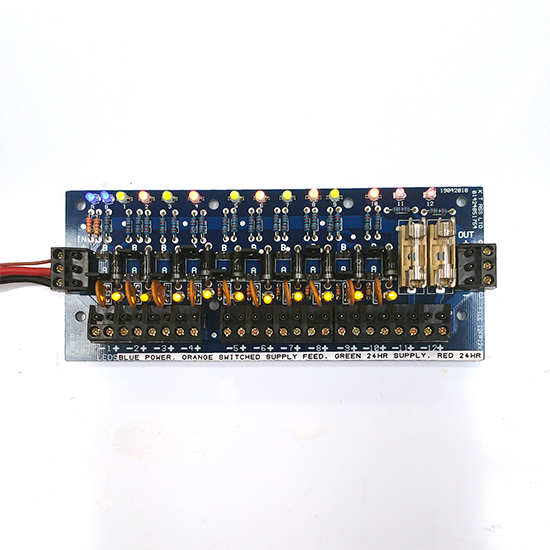

12 way fusecard designed to work with a permanent and switched supply. For technical details click the pdf download icon below

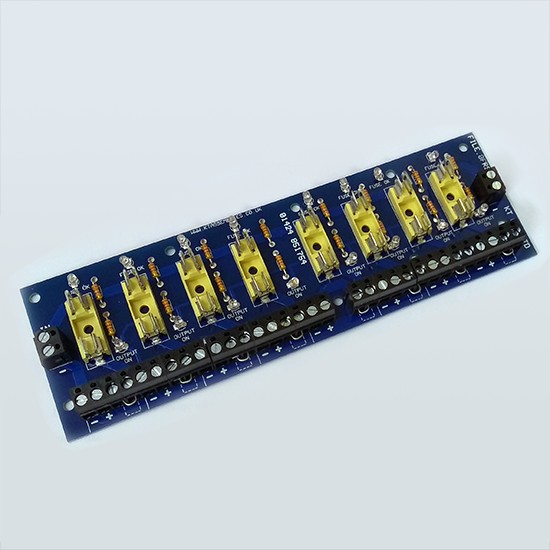

8 Way fuse card with LED indication. Each output can be individually controlled via closed loop circuitry

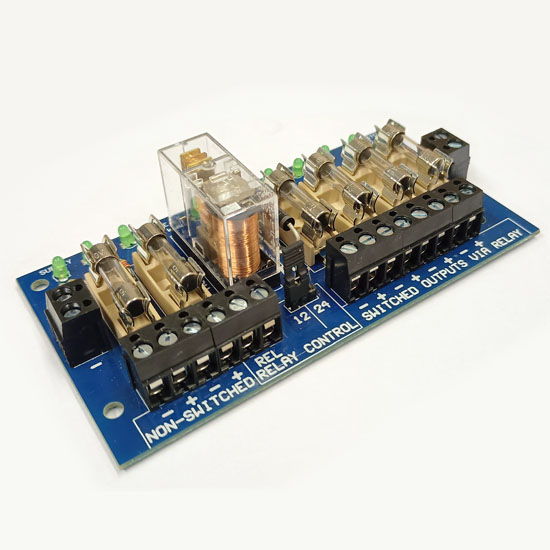

This is a 6 way relay card with two permanent and four switched outputs. The four switched O/P’s are controlled by a pair of terminals marked REL/Relay. When these terminals are closed the four switched O/P’s will be energized. There is a pair of terminals on each end for power in and power out, this can be 12 or 24Vdc, there is a jumper to either 12 / 24V this must be set correctly to prevent damage to the relay. There is a green LED adjacent to the power I/P to indicate that the power supply is on. There is a red LED adjacent to the O/P, when this is illuminated this indicates that the relay is energized and the four switched O/P’s are powered, the four switched LED’s will be illuminated. If an O/P LED is not lit this could indicate a blown fuse.
